Handling Workflow
Step 1 of 2
Each workflow enabled entity needs a WorkflowHandler. Create a new package in
the guestboook-service module called com.liferay.docs.guestbook.workflow,
then create the GuestbokWorkflowHandler class in it. Extend
BaseWorkflowHandler and pass in Guestbook as the type parameter:
public class GuestbookWorkflowHandler extends BaseWorkflowHandler<Guestbook> {
Make it a Component class:
@Component(immediate = true, service = WorkflowHandler.class)
There are three abstract methods to implement: getClassName, getType, and
updateStatus.
@Override
public String getClassName() {
return Guestbook.class.getName();
}
getClassName returns the guestbook entity’s fully qualified class name
(com.liferay.docs.guestbook.model.Guestbook).
@Override
public String getType(Locale locale) {
return _resourceActions.getModelResource(locale, getClassName());
}
getType returns the model resource name
(model.resource.com.liferay.docs.guestbook.model.Guestbook). The meat of the
workflow handler is in the updateStatus method:
@Override
public Guestbook updateStatus(
int status, Map<String, Serializable> workflowContext)
throws PortalException {
long userId = GetterUtil.getLong(
(String)workflowContext.get(WorkflowConstants.CONTEXT_USER_ID));
long resourcePrimKey = GetterUtil.getLong(
(String)workflowContext.get(
WorkflowConstants.CONTEXT_ENTRY_CLASS_PK));
ServiceContext serviceContext = (ServiceContext)workflowContext.get(
"serviceContext");
return _guestbookLocalService.updateStatus(
userId, resourcePrimKey, status, serviceContext);
}
When you crafted the service layer’s updateStatus method (see the last section
for more details), you specified parameters that must be passed to the method.
Here you’re making sure that those parameters are available to pass to the
service call. Get the userId and resourcePrimKey from GetterUtil. Its
getLong method takes a String, which you can get from the workflowContext
Map using WorkflowConstants for the context user ID and the context
entry class PK.
Make sure you inject the ResourceActions service into a private variable at
the end of the class, using the @Reference annotation:
@Reference(unbind = "-")
protected void setResourceActions(ResourceActions resourceActions) {
_resourceActions = resourceActions;
}
private ResourceActions _resourceActions;
Inject a GuestbookLocalService into a private variable using the @Reference
annotation.
@Reference(unbind = "-")
protected void setGuestbookLocalService(
GuestbookLocalService guestbookLocalService) {
_guestbookLocalService = guestbookLocalService;
}
private GuestbookLocalService _guestbookLocalService;
}
Organize imports ([CTRL]+[SHIFT]+O) and save your work.
Now the Guestbook Application updates the database with the necessary status information, interacting with Liferay’s workflow classes to make sure each entity is properly handled by Liferay DXP. At this point you can enable workflow for the Guestbook inside Liferay DXP and see how it works. Navigate to Control Panel → Workflow Configuration. The Guestbook entity appears among Liferay DXP’s native entities. Enable the Single Approver Workflow for Guestbooks; then go to the Guestbook Admin portlet and add a new Guestbook. A notification appears next to your user name in the product menu. You receive a notification from the workflow that a task is ready for review. Click it, and you’re taken to the My Workflow Tasks portlet, where you can complete the review task.
Figure 1: Click the workflow notification in the Notifications portlet to review the guestbook submitted to the workflow.
To complete the review, click the actions button
() from My Workflow Tasks and
select Assign to Me. Click the actions button again and select Approve.

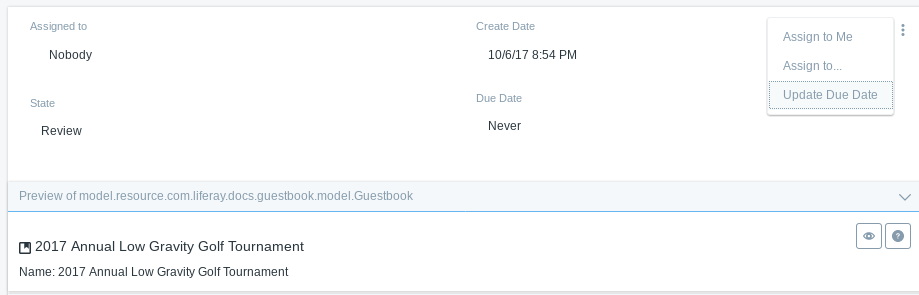

Figure 2: Click the workflow notification in the Notifications portlet to review the guestbook submitted to the workflow.
Right now the workflow process for guestbooks is functional, but the UI isn’t adapted for it. You’ll write the workflow handler for guestbook entries next, and then update the UI to account for each entity’s workflow status.
