Creating the Entry Staged Model Data Handler

Enabling Staging and Export/Import
Step 2 of 7

A Staged Model Data Handler supplies information about a staged model (entity) to the Staging and Export/Import framework. Data handlers replace the need to access the database directly and run queries to export/import data.

You must create a staged model data handler for every entity you want Staging to track. This means you must create a data handler for both your guestbook and entry entities.

First, you’ll create a staged model data handler for guestbook entries.

In your guestbook-service module, create a package named com.liferay.docs.guestbook.exportimport.data.handler.
In that package, create the EntryStagedModelDataHandler class and have it extend the BaseStagedModelDataHandler<STAGED_MODEL> class:
```
public class EntryStagedModelDataHandler
    extends BaseStagedModelDataHandler<Entry> {
```
Add an @Component annotation above the class declaration to declare that the EntryStagedModelDataHandler class provides an implementation of the StagedModelDataHandler service:
```
@Component(
    immediate = true,
    service = StagedModelDataHandler.class
)
```

Set the staged model’s local services you need in your data handler:

@Reference(unbind = "-")
protected void setEntryLocalService(EntryLocalService entryLocalService) {

    _entryLocalService = entryLocalService;
}

@Reference(unbind = "-")
protected void setGuestbookLocalService(
    GuestbookLocalService guestbookLocalService) {

    _guestbookLocalService = guestbookLocalService;
}

private EntryLocalService _entryLocalService;
private GuestbookLocalService _guestbookLocalService;

This injects the entry and guestbook’s local services.

You must provide the class names of the models the data handler tracks. You can do this by overriding the StagedModelDataHandler’s getClassNames() method:
```
public static final String[] CLASS_NAMES = {Entry.class.getName()};

@Override
public String[] getClassNames() {
		return CLASS_NAMES;
}
```
As a best practice, you should have one staged model data handler per staged model. It’s possible to use multiple class types, but this is not recommended.
Add a method that retrieves the staged model’s display name:
```
@Override
public String getDisplayName(Entry entry) {
    return entry.getName();
}
```
The display name is presented with the progress bar during the export/import and publication processes.

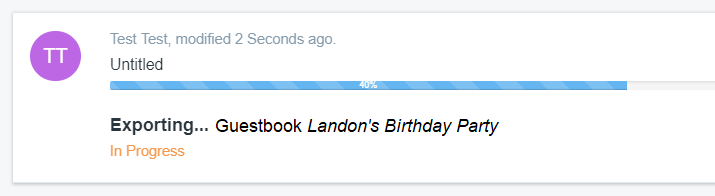

Figure 1: Your staged model data handler provides the display name in the Publish to Live UI.

A staged model data handler should ensure everything required for its operation is also imported/exported. For example, an entry requires a guestbook. Therefore, the guestbook should be exported first followed by the entry.

Add methods that import and export your staged model and its references.

@Override
protected void doExportStagedModel(
        PortletDataContext portletDataContext, Entry entry)
    throws Exception {

    Guestbook guestbook =
        _guestbookLocalService.getGuestbook(entry.getGuestbookId());

    StagedModelDataHandlerUtil.exportReferenceStagedModel(
        portletDataContext, entry, guestbook,
        PortletDataContext.REFERENCE_TYPE_PARENT);

    Element entryElement = portletDataContext.getExportDataElement(entry);

    portletDataContext.addClassedModel(
        entryElement, ExportImportPathUtil.getModelPath(entry), entry);
}

@Override
protected void doImportStagedModel(
        PortletDataContext portletDataContext, Entry entry)
    throws Exception {

    long userId = portletDataContext.getUserId(entry.getUserUuid());

    Map<Long, Long> guestbookIds =
        (Map<Long, Long>) portletDataContext.getNewPrimaryKeysMap(
            Guestbook.class);

    long guestbookId = MapUtil.getLong(
        guestbookIds, entry.getGuestbookId(), entry.getGuestbookId());

    Entry importedEntry = null;

    ServiceContext serviceContext =
        portletDataContext.createServiceContext(entry);

    if (portletDataContext.isDataStrategyMirror()) {
        Entry existingEntry = fetchStagedModelByUuidAndGroupId(
            entry.getUuid(), portletDataContext.getScopeGroupId());

        if (existingEntry == null) {
            serviceContext.setUuid(entry.getUuid());

            importedEntry = _entryLocalService.addEntry(
                userId, guestbookId, entry.getName(), entry.getEmail(),
                entry.getMessage(), serviceContext);
        }
        else {
            importedEntry = _entryLocalService.updateEntry(
                userId, guestbookId, existingEntry.getEntryId(),
                entry.getName(), entry.getEmail(), entry.getMessage(),
                serviceContext);
        }
    }
    else {
        importedEntry = _entryLocalService.addEntry(
            userId, guestbookId, entry.getName(), entry.getEmail(),
            entry.getMessage(), serviceContext);
    }

    portletDataContext.importClassedModel(entry, importedEntry);
}

The doExportStagedModel method retrieves the entry’s data element from the PortletDataContext and then adds the class model characterized by that data element to the PortletDataContext. The PortletDataContext populates the LAR file with your application’s data during the export process. Note that once an entity has been exported, subsequent calls to the export method don’t repeat the export process multiple times, ensuring optimal performance.

An important feature of the import process is that all exported reference elements are automatically imported when needed. The doImportStagedModel method does not need to import the reference elements manually; it must only find the new assigned ID for the guestbook before importing the entry.

The PortletDataContext keeps this information and a slew of other data up-to-date during the import process. The code snippet shows how to access the old ID and new ID mapping, by using the portletDataContext.getNewPrimaryKeysMap() method. The method proceeds with checking the import mode (e.g., Copy As New or Mirror) and depending on the process configuration and existing environment, the entry is either added or updated.

When importing a LAR (i.e., publishing to the live Site), the import process expects all of an entity’s references to be available and validates their existence.

For example, if you republish an updated guestbook to the live Site and did not include some of its existing entries in the publication, these entries are considered missing references. A more practical example of this would be an image included in a web content article. If the image included in the web content lives on a different Site (i.e., the image is contained in a different group) or was not included in the publication process, it’s considered a missing reference of the web content article.

Since you’re dealing with references on two separate Sites that have differing IDs, the system can’t easily match them during publication. Consider this scenario for the Guestbook app; suppose you export a guestbook entry as a missing reference with a primary key (ID) of 1. When importing that information, the LAR only provides the ID but not the entry itself. Therefore, during the import process, the Data Handler framework searches for the entry to replace by its UUID, but the entry to replace has a different ID (primary key) of 2. You must provide a way to handle these missing references.

To do this, you must add a method that maps the missing reference’s primary key from the export to the existing primary key during import. Since the reference’s UUID is constant across systems, it’s used to complete the mapping of differing primary keys. Note that a reference can only be missing on the live Site if it has already been published previously. Therefore, when publishing a guestbook for the first time, the system doesn’t check for missing references.

Add this method to your class:
```
@Override
protected void doImportMissingReference(
    PortletDataContext portletDataContext, String uuid, long groupId,
    long entryId)
throws Exception {

    Entry existingEntry = fetchMissingReference(uuid, groupId);

    if (existingEntry == null) {
        return;
    }

    Map<Long, Long> entryIds =
        (Map<Long, Long>) portletDataContext.getNewPrimaryKeysMap(
        Entry.class);

    entryIds.put(entryId, existingEntry.getEntryId());
}
```
This method maps the existing staged model to the old ID in the reference element. When a reference is exported as missing, the Data Handler framework calls this method during the import process and updates the new primary key map in the portlet data context.

Provide a way for the staged model data handler to fetch your staged models:

@Override
public Entry fetchStagedModelByUuidAndGroupId(String uuid, long groupId) {

    return _entryLocalService.fetchEntryByUuidAndGroupId(uuid, groupId);
}

@Override
public List<Entry> fetchStagedModelsByUuidAndCompanyId(
    String uuid, long companyId) {

    return _entryLocalService.getEntriesByUuidAndCompanyId(
        uuid, companyId, QueryUtil.ALL_POS, QueryUtil.ALL_POS,
        new StagedModelModifiedDateComparator<Entry>());
}

These methods use the entry’s local service to get the entries by UUID and company ID (i.e., portal instance’s primary key) or group ID (i.e., Site, Organization, or User Group’s primary key).

Override the BaseStagedModelDataHandler’s delete methods to leverage your newly created fetch method and custom local service:

@Override
public void deleteStagedModel(
        String uuid, long groupId, String className, String extraData)
    throws PortalException {

    Entry entry = fetchStagedModelByUuidAndGroupId(uuid, groupId);

    if (entry != null) {
        deleteStagedModel(entry);
    }

}

@Override
public void deleteStagedModel(Entry entry)
    throws PortalException {

    _entryLocalService.deleteEntry(entry);
}

These methods are necessary for the Staging framework to properly delete your entry staged models.

Organize your imports ([CTRL]+[SHIFT]+O), and save the file.

The entry’s staged model data handler is complete! Next you can create the guestbook’s staged model data handler.
