Screenlet Layer of Liferay Screens for iOS

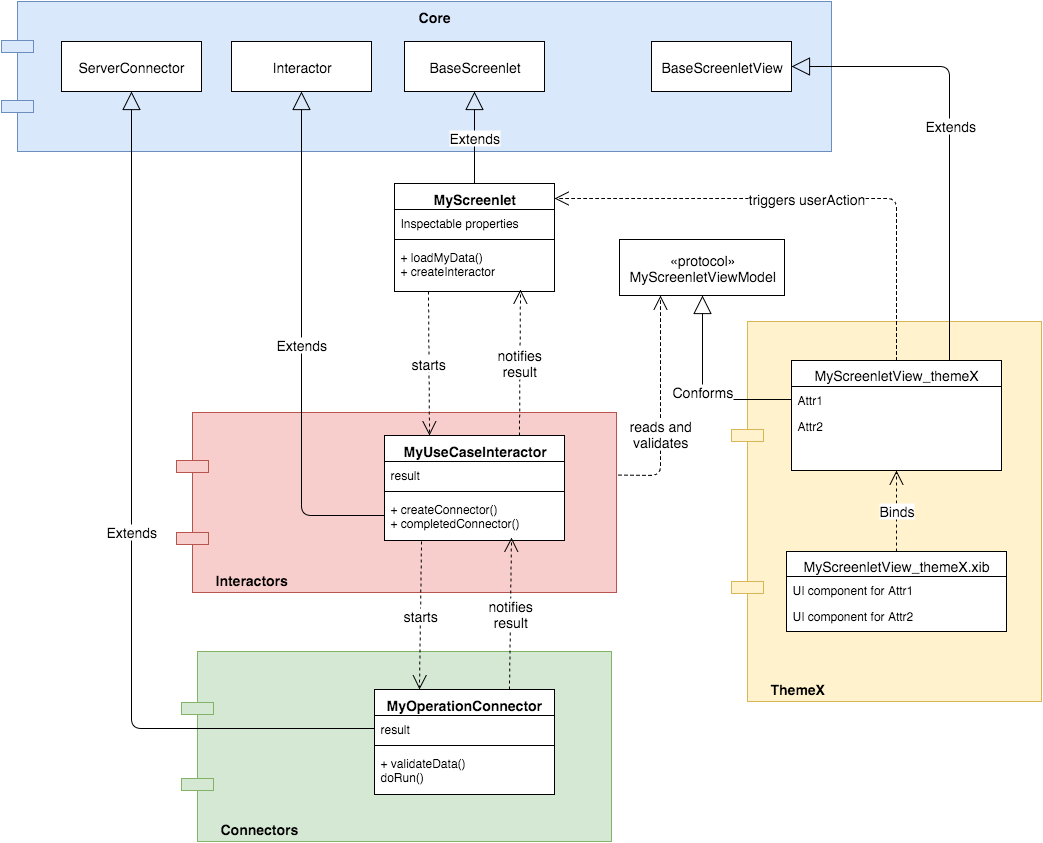

The Screenlet layer contains the available Screenlets in Liferay Screens for iOS. The following diagram shows the Screenlet layer in relation to the Core, Interactor, Theme, and Connector layers. The Screenlet classes in the diagram are explained in this section.

Figure 1: This diagram illustrates the iOS Screenlet Layer's relationship to other Screens components.

Screenlets are comprised of several Swift classes and an XIB file:

• MyScreenletViewModel: A protocol that defines the attributes shown in the UI. It typically accounts for all the input and output values presented to the user. For example, LoginViewModel includes attributes like the user name and password. A Connector can be configured by reading and validating these values. Also, the Screenlet can change these values based on any default values and operation results.

• MyScreenlet: a class that represents the Screenlet component the app developer interacts with. It includes the following things:

  • Inspectable parameters for configuring the Screenlet’s behavior. The initial state can be set in the Screenlet’s data.
  • A reference to the Screenlet’s View, based on the selected Theme. To meet the Screenlet’s requirements, all Themes must implement the ViewModel protocol.
  • Any number of methods for invoking Connectors. You can optionally make them public for app developers to call.
  • An optional (but recommended) delegate object the Screenlet can call on for particular events.

• MyUserCaseInteractor: Each Interactor runs the operations that implement the use case. These can be local operations, remote operations, or a combination thereof. Operations can be executed sequentially or in parallel. The final results are stored in a result object that can be read by the Screenlet when notified. The number of Interactor classes a Screenlet requires depends on the number of use cases it supports.

• MyOperationConnector: This is related to the Interactor, but has one or more Connectors. If the Server Connector is a back-end call, then there’s typically only a single request. Each Server Connector is responsible for retrieving a set of related values. The results are stored in a result object that can be read by the Interactor when notified. The number of Server Connector classes an Interactor requires depends on the number of endpoints you need to query, or even the number of different servers you need to support. Connectors are always created using a factory class. You can therefore take advantage of Inversion of Control. This way, you can implement your own factory class to use to create your own Connector objects. To tell Screens to use your factory class, specify it in the liferay-server-context.plist file as described in the tutorial on preparing your iOS project for Screens.

• MyScreenletView_themeX: A class that belongs to one specific Theme. In the diagram, this Theme is ThemeX. The class renders the Screenlet’s UI by using its related XIB file. The View object and XIB file communicate using standard mechanisms like @IBOutlet and @IBAction. When a user action occurs in the XIB file, it’s received by BaseScreenletView and then passed to the Screenlet class via the performAction method. To identify different events, the component’s restorationIdentifier property is passed to the performAction method.

• MyScreenletView_themeX.xib: An XIB file that specifies how to render the Screenlet’s View. Its name is very important. By convention, a Screenlet with a view class named FooScreenletView and a Theme named BarTheme must have an XIB file named FooScreenletView_barTheme.xib.

For more details, refer to the tutorials on creating iOS Screenlets.
